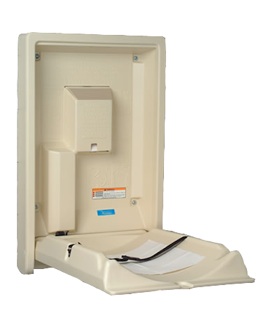

KBCS Vertical Baby Changing Station

Click image to enlarge

MD35 Bed Liner Starter PackAccessories.html
Sebreeze® Odour control UnitsNappy_Disposal.html
E7731 Nappy Disposal ContainerNappy_Disposal.html

Associated items recommended for use with KBCS Vertical  Baby Changing Station

The KBCS Commercial Vertical Wall Mounted Baby Change Station. FDA approved blow moulded high-density polyethylene with Microban® antimicrobial additive. Reinforced full-length steel-on-steel hinge mechanism, with 11-gauge steel mounting plates and mounting hardware included. Moulded in graphics & safety messages in six languages and Braille.Concealed pneumatic cylinder and hinge structure provides controlled, slow opening and closing of bed.

Key Features

  1. High-density Polyethylene is easy to clean and resists odours and bacterial growth

  2. Microban® antimicrobial additive embedded into the units surface

  3. Compact, fold-away design

  4. Reinforced full-length steel-on-steel hinge mechanism

  5. Concealed pneumatic cylinder and hinge structure provides controlled, slow opening and closing

  6. Labelled usage instructions and safety messages in six languages

  7. Withstands static loads in excess of 100Kg



Safety Standards

The KBCS conforms to:

ANSI S117.1 Accessible and Usable Building and Facilities

ASTM F 2285-04 Standard Safety Performance Specification for Commercial Baby Changing Tables

ASTM G21 Anti fungal Standards

ASTM G22 Antibacterial standards

Unit shall comply with ADA regulations when properly installed


KBCS - Technical Information

Ref. KBCS - Size: 560mm (width), 900mm (height), 135mm (Closed depth), 885mm (open depth). Material: FDA approved blow moulded high-density polyethylene with Microban® antimicrobial. Reinforced full-length steel-on-steel hinge mechanism, with 11-gauge steel mounting plates and mounting hardware included.

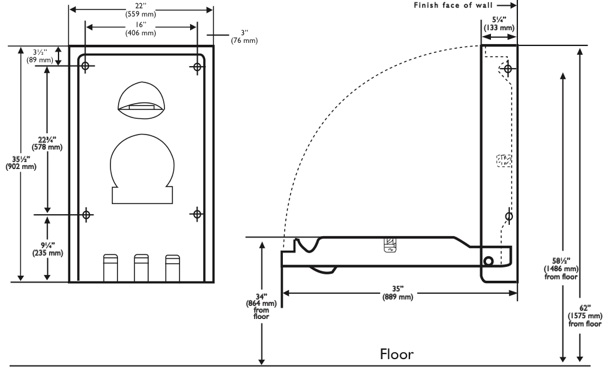

KBCS - Technical Specification

Click technical drawing to enlarge

Product Specification
