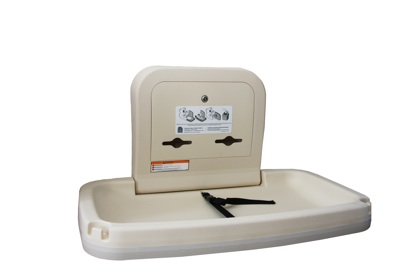

KBHS Horizontal Baby Changing Station

MD35 Bed Liner Starter PackAccessories.html
Sebreeze® Odour control UnitsNappy_Disposal.html
E7731 Nappy Disposal ContainerNappy_Disposal.html

Associated items recommended for use with KBHS Horizontal Baby Changing Station

The KBHS Commercial Horizontal Baby Changing Station has a unique steel chassis which can can support up to 90Kg. The Steel on Steel hinge minimises wear and increases durability. FDA approved injection moulded polypropylene with Microban® antimicrobial additive embedded into the bed surface.Concealed pneumatic cylinder and metal mounting chassis provides controlled, slow opening and closing of bed.

Key Features

  1. Hygienic, easy-clean surface

  2. Microban® antimicrobial additive embedded into the units surface

  3. Compact, fold-away design

  4. Reinforced steel-on-steel hinge mechanism

  5. Concealed pneumatic cylinder and metal mounting chassis provides controlled, slow opening and closing of bed.

  6. Labelled usage instructions and safety messages in four languages

  7. Withstands static loads in excess of 90Kg


Safety Standards

The KBHS conforms to:

ANSI S117.1 Accessible and Usable Buildings and Facilities

ASTM F 2285-04 Standard Safety Performance Specification for Baby Changing Tables for Commercial Use

ASTM G21 Anti fungal standards

ASTM G22 Antibacterial standards

ASTM static load performance requirements when properly installed

Unit shall comply with ADA regulations when properly installed


KBHS - Technical Information

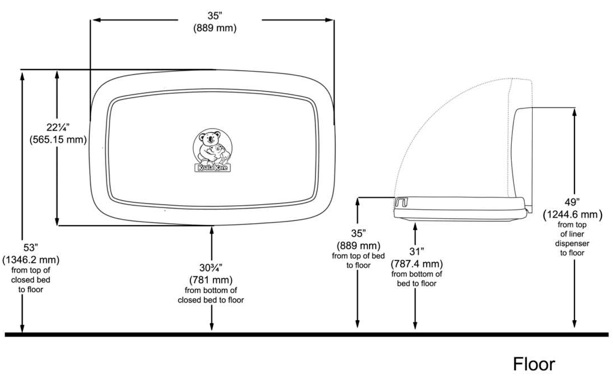

Ref. KBHS - Size: 889mm (width), 565mm (height), 101mm (Closed depth), 570mm (open depth). Material: FDA approved injection moulded polypropylene with Microban® antimicrobial additive embedded into the bed surface. Reinforced steel-on-steel hinge mechanism and metal mounting chassis with mounting hardware included.

KBHS - Technical Specification

Click technical drawing for more details
